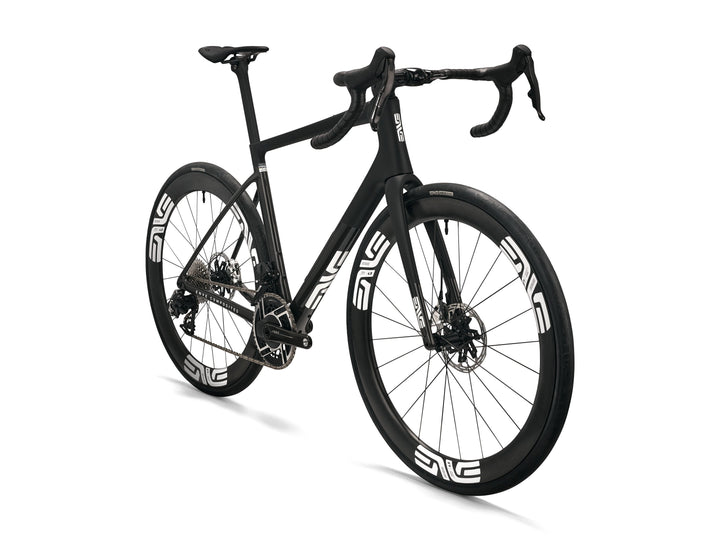

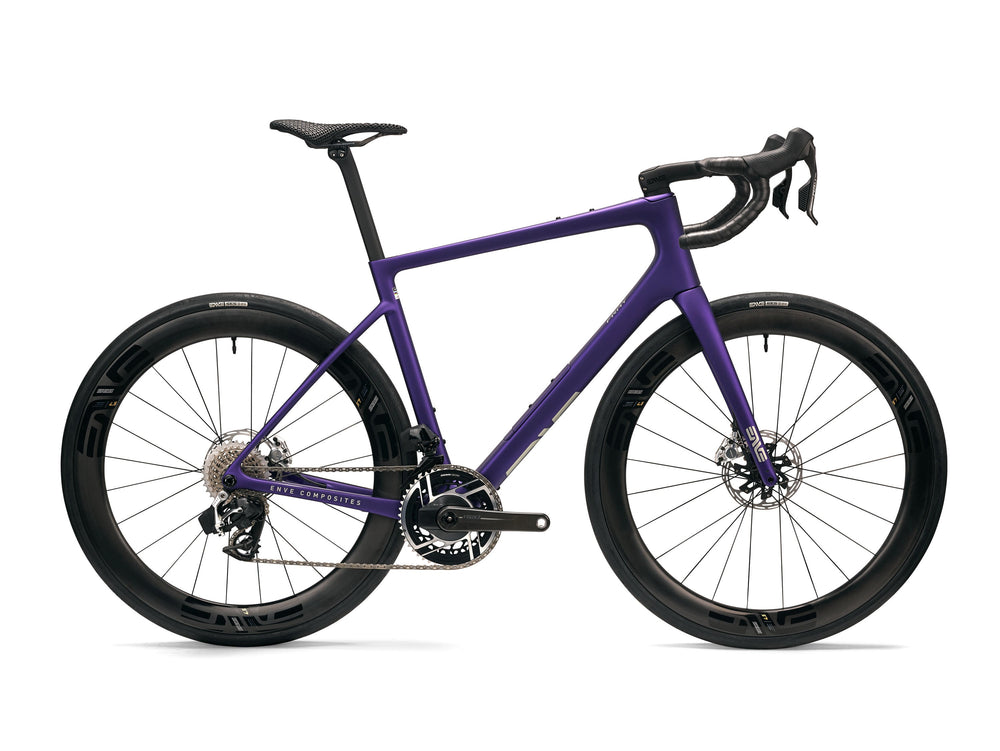

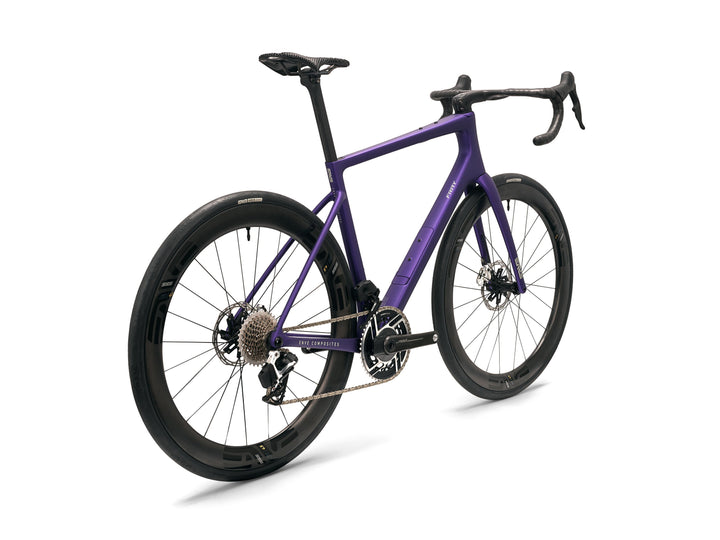

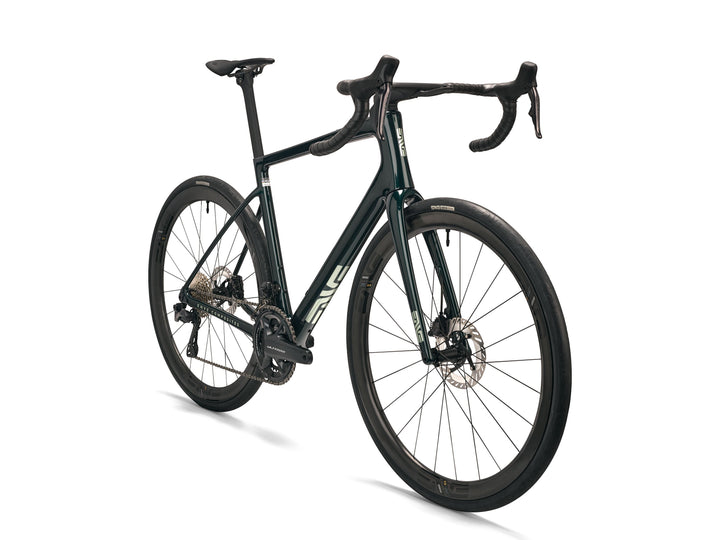

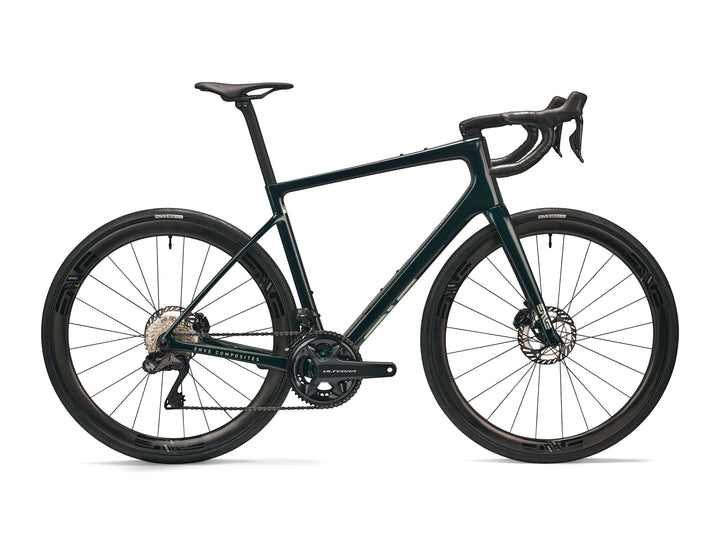

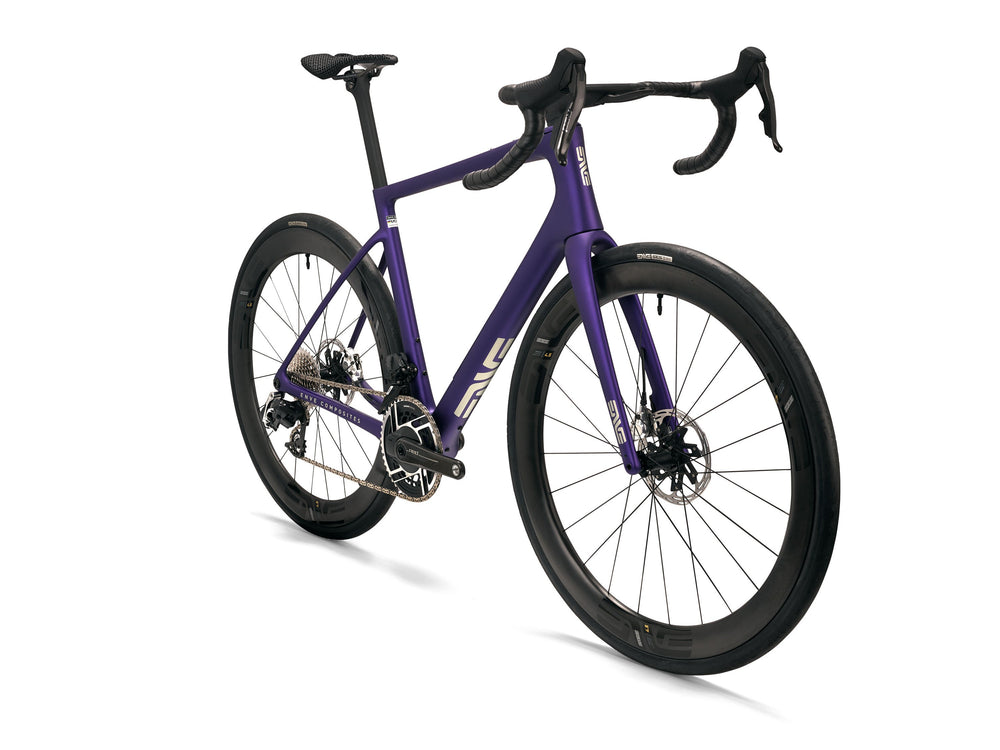

All Road or Endurance, call it what you want. The Fray is for riders who want speed, versatility, and max performance – infused with a World Tour pedigree and a call for exploration.

An ENVE Chassis is the canvas upon which you can build your dream bike. The Fray is sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, and seatpost setback. If there are questions regarding your fit, work with your ENVE retailer and/or bike fitter, and employ the use of the ENVE Best-Fit Calculator to reach your ideal chassis configuration. From there, pair it with your drivetrain of choice and your favorite SES or Foundation wheelset.

Fray Chassis - $5,500

Color
Size

  • Real-World Fast™ aero optimization
  • Geometry optimized for 31mm - 35mm tires
  • Tire clearances fits up to a 700 x 40mm (1x), 700 x 38mm (2x)
  • ENVE Cargo Bay integrated downtube storage allows in-frame storage solution
  • Top tube and downtube mounts for adding bags, bottle cage, tools, or any other gear needed to tack on for big adventure rides
  • Aero tube shapes & design that complements SES rim shapes
  • Universal Derailleur Hanger (UDH) compatible allows choice of drivetrain
  • Frame Weight 900g (Size 56cm Painted, No Hardware)

Frame Material ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat Mount Disc, Threaded &47 BB, Internal Routing, Fender Compatible
Fork Material ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat Mount Disc, Internal Routing, Fender Compatible
Target Application All Road / Endurance / Mixed Surface / Sportif / Fondo
Sizes (cm) 47, 50, 52, 54, 56, 58, 60
Fork Rake 55, 51, 47, 43
Frame Size/Fork Rake 47cm/55, 50cm/55, 52cm/51, 54cm/51,
56cm/47, 58cm/47, 60cm/43
Frame Weight 900g +/- 2% (Size 56, Painted, No Hardware)
Headset ENVE Integrated IS52/IS52 Internal Drop-In
Headset Bearing 1.5″ IS52 Upper and Lower
Seat Post Diameter ENVE Aero
BB Type T47 Inboard Bearing
Brake Mount Flat Mount
Front Axle 12×100 (Total Length: 122, TP:1.5, TL:15)
Rear Axle 12×142 (Total Length: 168, TP:1.0, TL:14)
Minimum Tire Size 27mm
Optimal Tire Size 31mm - 35mm
Maximum Listed Tire Clearance 1x 40mm
Maximum Listed Tire Clearance 2x 38mm
In-Frame Storage Yes (2 Storage Bags included - 18.22 cubic cm each)
Frame Routing Internal
Waterbottle Capacity 3
Top Tube Mounts Yes
Fender Compatible Yes
Wheel Size 700c

47 50 52 54 56 58 60
Reach 365 371 377 383 389 396 403
Stack 522 540 556 573 591 610 633
Top Tube 510 524 539 552 565 581 599
Rake 55 55 51 51 47 47 43
Seattube Length(C to top) 426 445 465 480 502 519 529
Max Saddle Rail Height with 275mm Post 676 695 715 730 752 769 779
Max Saddle Rail Height with 350mm Post 701 720 740 755 777 794 804
Max Saddle Rail Height with 400mm Post 751 770 790 805 827 844 854
Seattube Angle 75 74.5 74 73.75 73.5 73.2 72.75
Headtube Angle 70.9 71.3 72 72 72.6 72.6 73.3
Headtube Length 107 125 137 157 172 194 215
Bottom Bracket Drop 78 78 78 76 76 74 74
Chainstay Length 415 415 415 415 415 417 420
Wheel Base 985 994 994 1006 1008 1024 1029
Front Center 577 586 586 598 600 613 616
Standover 699 718 738 756 777 797 824
Bottom Bracket Height (31mm Tire) 264 264 264 266 266 268 268
Trail (29mm Tire) 60.2 58 57.5 57.5 57.9 57.9 57.7
Trail (31mm Tire) 61.1 58.9 58.3 58.3 58.7 58.7 58.5
Trail (33mm Tire) 62 59.7 59.1 59.1 59.5 59.5 59.2
Trail (35mm Tire 62.8 60.6 59.9 59.9 60.3 60.3 60

COMPONENT COMPATIBILITY
Handlebars ENVE IN-Route
Stem ENVE IN-Route
Seat Posts Aero 275mm x 0 Offset
Aero 350mm x 0 Offset
Aero 350mm x 20 Offset

DRIVETRAIN COMPATIBILITY
Shimano Mechanical 1x Yes
Shimano Mechanical 2x Yes
Shimano Electronic Di2 (1x/2x) Yes
SRAM Mechanical 1x Yes
SRAM Mechanical 2x No (Fray requires continuous housing for FD)
SRAM AXS (1x/2x) Yes
Campy Mechanical 1x Yes
Campy Mechanical 2x No (Fray requires continuous housing for FD)
Campy Electronic EPS Not Compatible

Brake Rotors
Fork
Fork is 160mm only
Frame
Rear brake/frame is 140mm or 160mm with adapter.



Package PN Description
Frame
Fork (Rake is Frame Size Dependent)
Installed On Fork 200-2009-008 Front Axle
Installed On Frame 000-0050-951 Rear Axle
Installed On Frame UDH Rear Derailleur Hanger and Bolt
Installed On Frame 100-5003-014 Front Derailleur Mount
Installed On frame 000-0050-903 M5 Button Head Accessory Bolts (M5x0.8x13mm, Button Head)
Installed On Frame 000-0050-946 Fender Mount Set Screws (M5x0.8x10mm)
Installed On Frame 100-5003-904 Chainstay Protector
Disc Brake Rotor Protector
Installed On Frame 100-5006-XXX Frame Door and Latch (Frame Color Dependent)
Installed On Frame 100-5004-017 Cargo Bay Door Gasket
Installed On Frame 100-5004-904 Cargo Bay Door Hardware
Installed On Frame 100-5004-032 Cargo Bay Latch Anti-Friction Sticker
In Bag 100-5004-906 6mm Cable Routing Hole Plug
Di2 Wire Cable Grommet
Blank Cable Grommet
Shift Housing Cable Grommet
In Bag 100-5003-901 Seatpost Clamp Kit
In Bag 100-5003-015 Headset Kit
In Bag 100-5003-XXX Top Headset Bearing Cover (Frame Color Dependent)
In Bag 200-0000-032 Fork Compression Plug
In Bag 100-5004-027 Cargo Bay Storage Bags (2)
In Bag 100-5004-028 Cable Management Strap
In Bag Owner's Manual
In Bag Torque Wrench (Includes Extra Accessory Bits)
In Bag Frame Finishing Kit (Cable Sheathing, Heat Shrink, Padded Foam)

"At its core, the Fray is a performance road bike, with incredible versatility that lends itself to forays onto mixed surfaces. In the absence of the Fray, there were those looking for an “all-road” solution from ENVE amongst our Melee and MOG offering. ENVE products are purpose-built, and the Fray embodies this ethos."

- Jake Pantone, ENVE VP of Product and Brand.

REAL-WORLD FAST™

Developed in CFD and the wind tunnel, the Fray features refined tube shapes that have been tuned to complement our own SES™ rim shapes and deliver aerodynamic performance that is Real-World Fast™. Additional features such as the IN-Route System add to the Fray's slippery design.

Real-World Fast™ Defined:

  • Balanced for aero efficiency and weight savings
  • Tube shapes complement SES rim shapes
  • Integrated Front-End hides wires and brake

INTEGRATED FOR SPEED

The Integrated Front-End routes wires and hoses through the bar, stem, and headset where they’re secured using ENVE’s anti-rattle frame finishing kit. This allows internally routed hoses and wires to remain silent, out of sight, and out of the wind. Featuring the IN-Route Aero Stem and your choice of IN-Route handlebar, the Fray capitalizes on the conveniences of a two-piece handlebar and stem while maximizing the aerodynamic benefits of the streamlined design.

PERSONALIZE YOUR CHASSIS

An ENVE Chassis is the canvas upon which you can build your dream bike. The Fray is sold as a chassis-only which includes the frame, fork, headset, stem, handlebar, and seatpost. To initiate your build, begin by selecting your frame size, stem length, handlebar width, and seatpost setback. If there are questions regarding your fit, work with your ENVE retailer and/or bike fitter, and employ the use of the ENVE Best-Fit Calculator to reach your ideal chassis configuration. From there, pair it with your drivetrain of choice and your favorite SES or Foundation wheelset.

Find your local ENVE Ride Center.

IN-Route System

The ENVE IN-Route System routes wires and hoses through the bar, stem, and headset, where they’re secured using ENVE’s anti-rattle finishing kit – allowing them to remain silent, out of sight, and out of the wind.

AERO SEATPOST

The Fray features an aero seatpost with a Kamm tail design and ENVE's patented twin-bolt saddle rail clamp design. Available in straight or 20 mm setback and compatible with 7x7, 7x9, and 7x10 mm saddle rails.

MATERIAL OPTIMIZED DESIGN (M.O.D.)

We are carbon experts, artisans of our craft, using the best material for the application and making the products that we want to ride. At ENVE, we design and build to the strengths of carbon fiber. This means running continuous fibers throughout the frame and fork, tapering the laminate, and removing excess material to save weight. Carbon fiber is layered and oriented to achieve zone-specific performance requirements like impact toughness, stiffness and compliance. M.O.D. is giving you everything you need, and nothing that you don’t to perform when the rubber hits the road.

Optimized for All Roads

The Fray geometry is optimized around 31 to 35mm tires, though it can fit up to 40mm. Combined with progressive endurance geometry and the ENVE Cargo Bay for in-frame downtube storage, the Fray brings road race performance to those seeking a wider range of surfaces and terrain.

Threaded T47 Inboard-bearing bottom bracket

Featuring a threaded T47 inboard-bearing bottom bracket for smooth, silent, creak-free operation. Your bottom bracket is the last thing you should have to think about.

Cargo Bay Frame Storage

Borrowing from the MOG, the Fray also features ENVE’s Cargo Bay, an integrated downtube storage solution that makes efficient use of unused space for stashing your flat tire repair kit, windbreaker, or anything else you choose to carry. Under the Cargo Door, two Cargo Bags allow for 36 cubic inches/0.6 liters of storage. It’s a fast and simple storage solution that can be appreciated by racers and adventurers alike.

Rider specific fit and tune

At the foundation of performance is bike fit and geometry. If those two fundamentals are not established, all the engineering wizardry and space age materials in the world won’t save your ride. You need an optimized fit and tuned geometry to give you the confidence and comfort needed to reach your performance potential.

Offered in seven sizes with four fork rakes and giving you the opportunity to choose your bar model, bar width, stem length, stem rise, seatpost length and offset, the Fray has your ideal fit in mind. This ensures that all Frays, regardless of size, will deliver the same level of responsive, confidence inspiring handling required from a performance all road bike.
